Cannot Redirect to UWP application with custom URI

Question

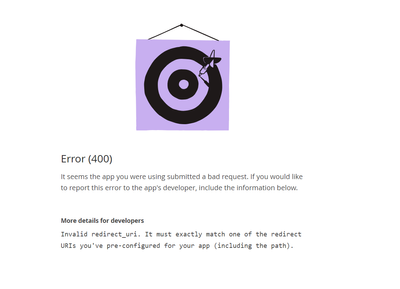

Hi team,We initially implemented the WebView in the Xamarin application for all platforms; it initially worked well, but now that the support for WebView is deprecated, we are unable to use the Web view to authenticate Dropbox logins. Further analyzing this issue, we have come across a suggestion to use the built-in browser at the following link:https://www.dropboxforum.com/t5/Dropbox-API-Support-Feedback/UWP-Webview-and-Token-Authorization/m-p/506972/highlight/true#M25045&nbsp;The application is calling the browser only when a redirect URI is set to a website. As per the suggestion, we can create a new redirect URI for an application that can be used on the application, but when we implement this URI and load the application, the browser opens with the following error message:&nbsp;&nbsp;Redirect URI on the UWP application:&nbsp;&nbsp;Redirect URI on Dropbox App Console:&nbsp;&nbsp;I have checked this URI with other applications on UWP, and it calls this application without any issues.Could you check on this and update the details? If possible, a simple sample for this implementation would be appreciated.

Greg-DB · Answer

Can you share the full URL of the page displaying that error message? That would help for debugging this.

ManojDB · Answer

Hi please find the URL here,&nbsp;https://www.dropbox.com/oauth2/authorize?response_type=code&amp;client_id=rw3z32n14w4fz73&amp;redirect_uri=dbssample%3A%2F%2Floadpdffromurl.uwp%2F&amp;force_reapprove=true&amp;force_reauthentication=true&amp;token_access_type=offline&amp;code_challenge_method=S256&amp;code_challenge=NGj9CzsD7KVG4jZPVl96Eu5ROvRP_GCPd2W_xES2y3A

Greg-DB · Answer

Thanks for sharing that. From your earlier screenshot, I see that the app is registered for the redirect URI "dbssample://LoadPDFFromURL.UWP/", however in the 'redirect_uri' parameter in this authorization URL, I see that you're using "dbssample://loadpdffromurl.uwp/".
&nbsp;
Those values need to be exactly the same. So to address this, either update your app to use "dbssample://LoadPDFFromURL.UWP/" in the authorization URL, or register your app for "dbssample://loadpdffromurl.uwp/".

Здравко · Answer

Greg-DB&nbsp;wrote:.... So to address this, either update your app to use "dbssample://LoadPDFFromURL.UWP/" in the authorization URL, ...Haha... 😁 Greg-DB, can you post some example code doing that? 🧐Dropbox .NET SDK won't let you. 😉 Take a look here.By the way... URI components are case insensitive (or should be at least). That's why, .NET lowercase the URI, but Dropbox core seems ignore this! This is Dropbox BUG! 🙂Let's hope this will be fixed soon.&nbsp;Hi ManojDB,In general it's bad idea to use mixed case URIs. By the way we are talking for URI here not for URL - another term mistake. In spite the check should be case insensitive, it's preferable usage of lower case letters as a URI or URL construct!Instead waiting for Dropbox bug resolve, just make all your strings lower case everywhere. This will solve your issue. 😉Hope this helps.

Greg-DB · Answer

Thanks! I'll ask the team to fix that up.
